BAE-0300 Cerakote Oven
BAE-0300 Cerakote Oven - Image 2
BAE-0300 Cerakote Oven - Image 3
BAE-0300 Cerakote Oven - Image 4
BAE-0300 Cerakote Oven - Image 5

BAE-0300 Cerakote Oven

Categories: ,

Description

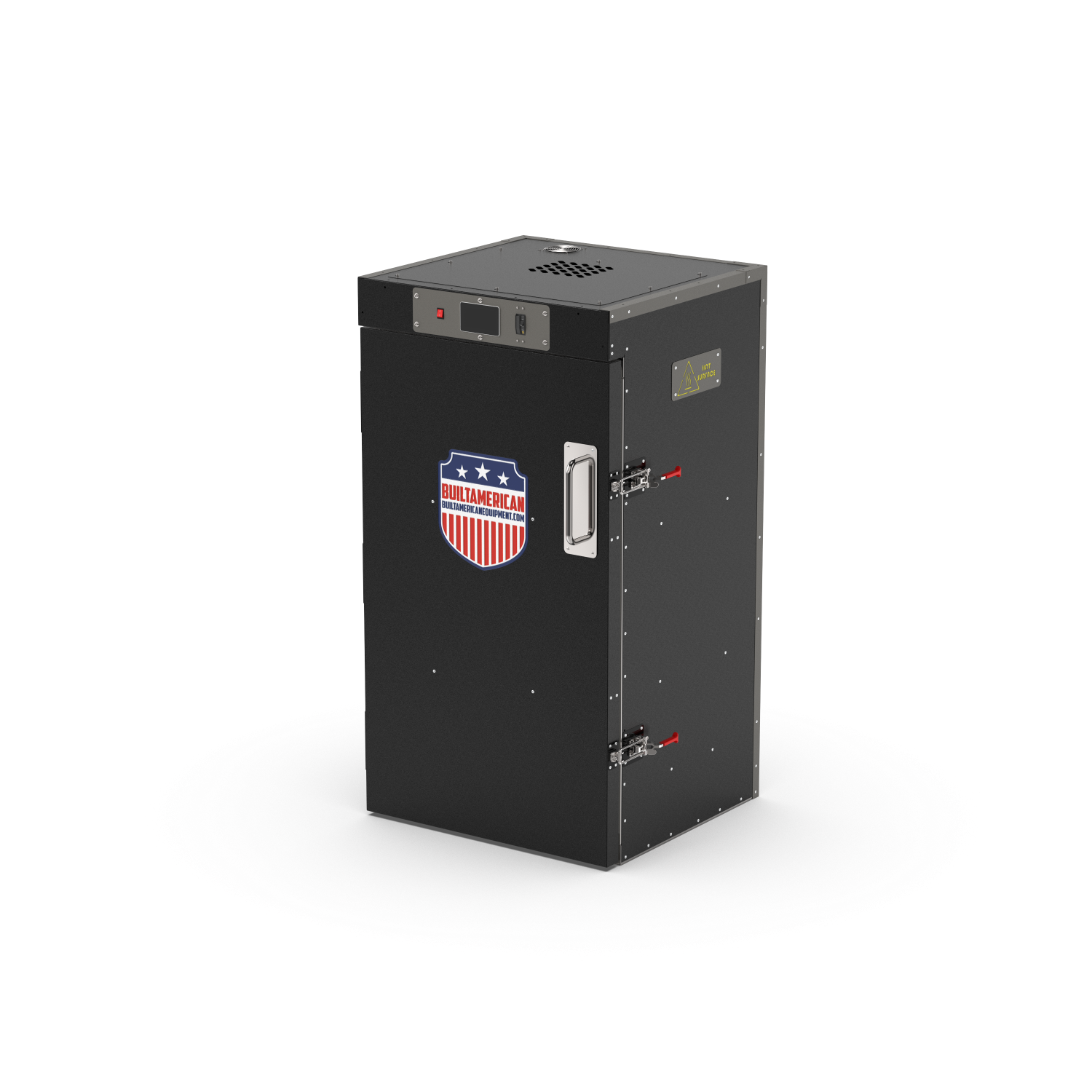

Built American Equipment’s BAE-0300 Standup Capacity Cerakote Convection Oven was engineered specifically for Cerakote™ applicators. It is built for curing Cerakote ™ ceramic coatings. The convection assist airflow design teamed with the high temperature motor provides temperature uniformity to ensure consistent drying, curing and baking results.

Updated Design with Improved Workflow Features:

  • Refined Layout: Streamlined design enhances functionality and overall performance.

  • Insulated Hybrid Floor with Fitted Roller Cart: Keeps the roller cart precisely centered within the curing chamber.

  • Upgraded Roller Cart: Includes a hanging rack top shelf and a removable middle shelf for added versatility.

  • Optimized Air Circulation: Hot air is drawn from the top, routed through internal ductwork, and evenly redistributed from the bottom.

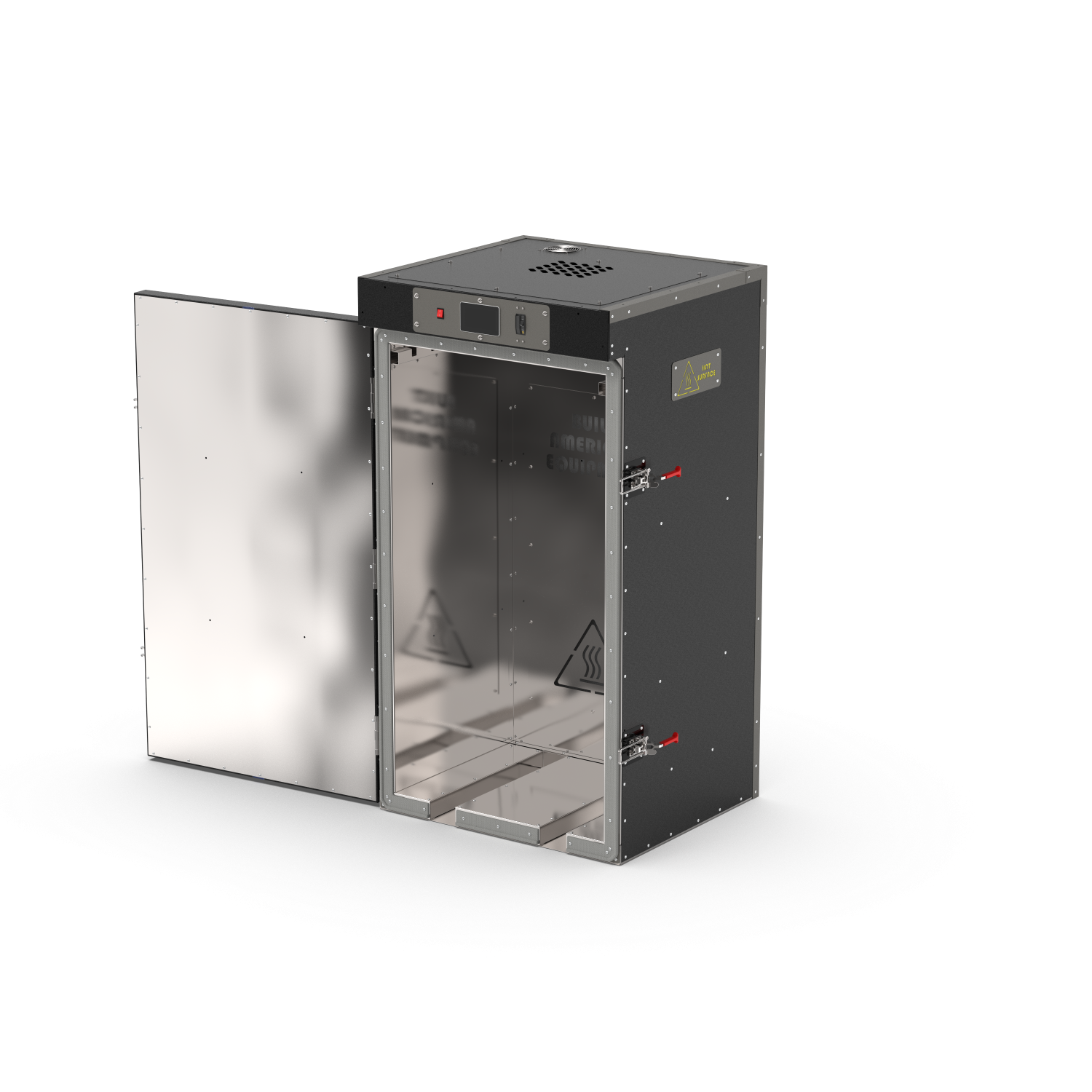

  • Unobstructed Chamber Access: All ductwork, heating elements, and temperature sensors are built into the chamber walls, maximizing usable space.

Key Features:

  • Corrosion-resistant curing chamber

  • Durable, industrial-grade exterior finish

  • Energy-efficient operation

  • Wide operating temperature range: 000° to 550°F

  • Intuitive, microprocessor-controlled interface

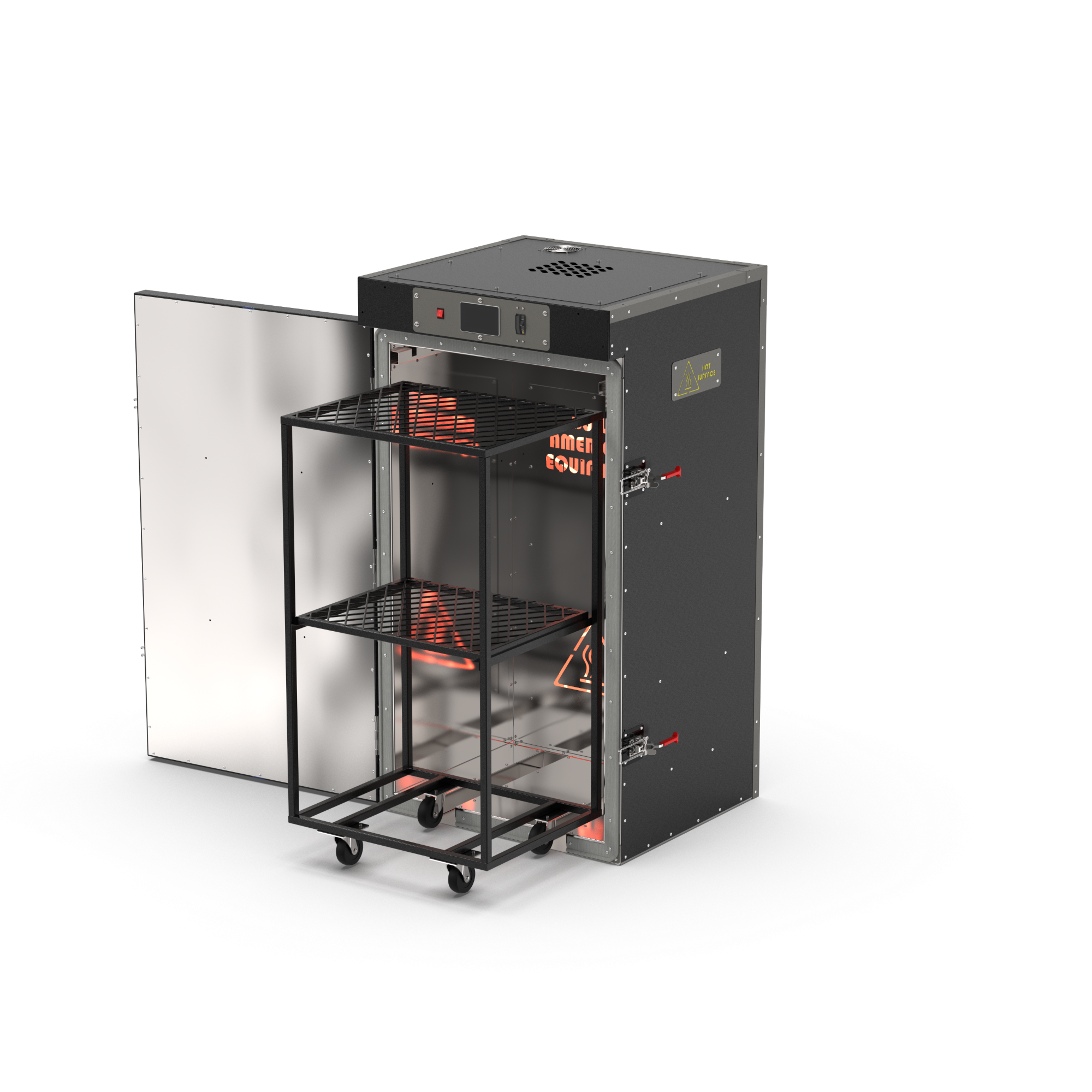

  • Includes one (1) roller cart with removable shelf fixture system

  • High-temperature ceramic fiberglass door seal

  • Dual mineral-insulated, metal-sheathed heating elements for extended life

  • Protective cover plate for heating elements

PRODUCT OPTIONS:

  • Touch Screen Controller Upgrade (USB Controller Upgrade (USA) Ethernet & Wi-Fi – Not required for all applications. This controller allows you to access and program remotely. Access history can be saved. Access preset settings in a very simple, user-friendly format. This controller changes the temperature setting according to the preset program pattern. The program consists of raising, lowering, and holding temperature settings.)

  • Roller Carts (One roller cart is included with each BAE-0300 unit.)

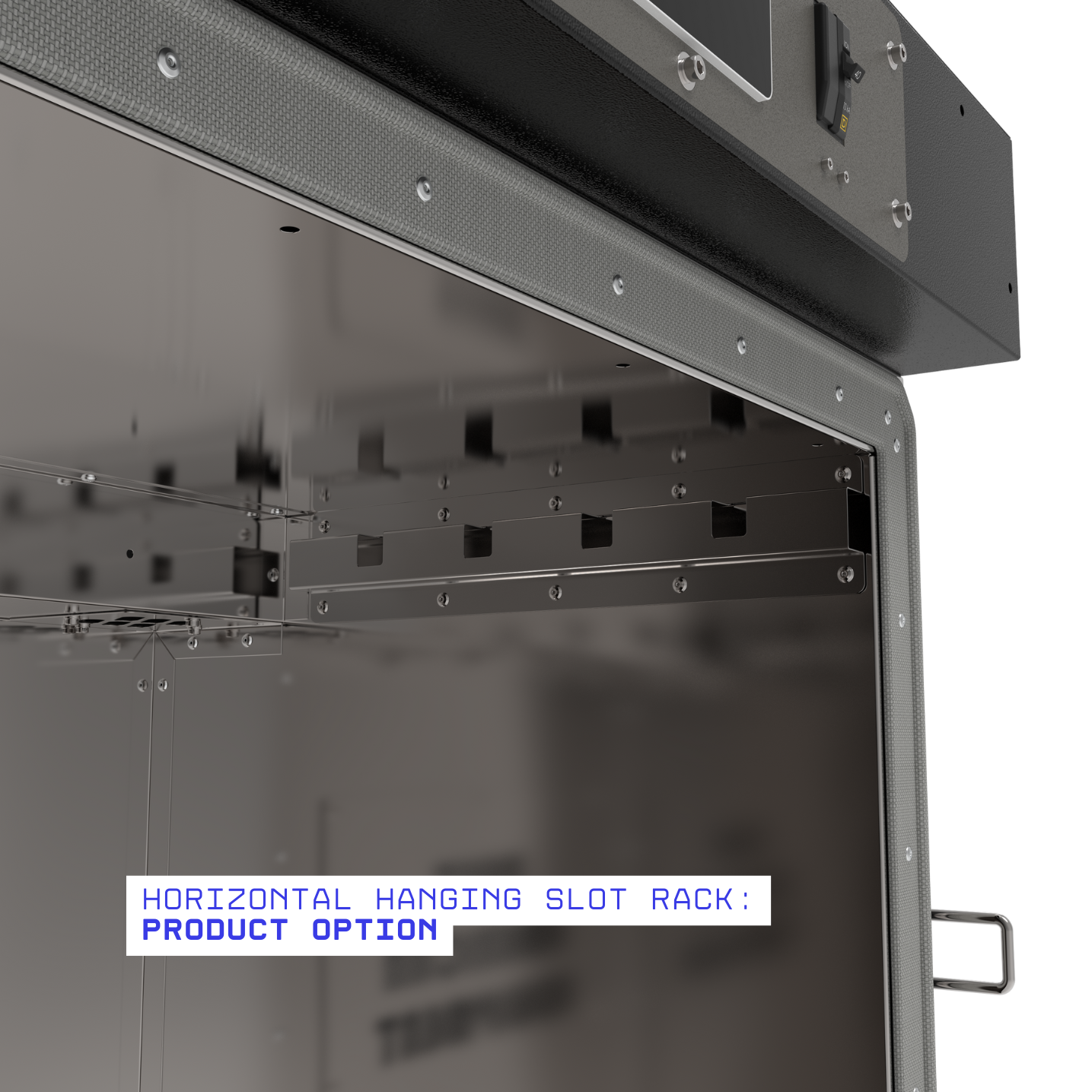

  • Horizontal Hanging Slot Rack (Includes one (1) left and one (1) right side bracket; center pole not included.)

  • Stainless Steel Chamber

  • Three phase


Electrical Specifications:
Single Phase
208-240VAC
40A
Mechanical Specifications:
Chamber Volume:
28.68 cu.ft.
Weight:
800 lb
Interior Dimensions:
32” Length x 26” Depth x 58” Height
Exterior Dimensions:
37” Length x 35” Depth x 70” Height


Unit:

Standup Capacity Cerakote Convection Oven

Model:

BAE-0300

Warranty:

One year limited warranty
